Stainless Steel (06Cr13Ni4Mo) Small Pelton Turbine / Small Water Turbine / Mini Hydro Generator

1 set
MOQ
Stainless Steel (06Cr13Ni4Mo) Small Pelton Turbine / Small Water Turbine / Mini Hydro Generator
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: CJA237-W-55/1x7
Type: hydro turbine, Small Pelton Turbine
Capacity: 75kW
Rated water Head: 73.8 m
Design Discharge: 0.1325 m³/s
Rated Speed: 600r/min
Runner Material: Stainless Steel (06Cr13Ni4Mo)
Basis informatie
Model Number: CJA237-W-55/1x7
Betalen & Verzenden Algemene voorwaarden
Packaging Details: standard export packing, wooden cases, structural steel
Supply Ability: 1000 Set/Sets per Year
Productomschrijving

Small Pelton Turbine / Small Water Turbine / mini hydro generator

Item

Parameter

Capacity

75kW

Rated Head

73.8m

Rated Flow

0.1325 m3/s

Turbine Type

Horizontal Pelton Turbine

Turbine Modle

CJA237-W-55/1x7

Rotation Speed

600r/min

No. of Nozzle

1

Jet Diameter7cm

Runner Diameter

55cm

Runner Material

Stainless Steel (06Cr13Ni4Mo)

Description of type:

CJA237–W-55/1×7 type turbine:

CJ — Pelton turbine

A237 — Code of runner

W — Horizontal shaft

55 — Diameter of runner (cm)

1 — Number of nozzle

7 — Diameter of jet flow (cm)

2. The turbine connects with generator by flexible ring coupler. The direction of rotation is clockwise viewed from generator.

3. It adopts long nozzle of 62°/45°with better hydraulic performance, 135°jet elbow and inlet elbow.

4. It use rolling bearing, adopts reverse nozzle apparatus braking device.

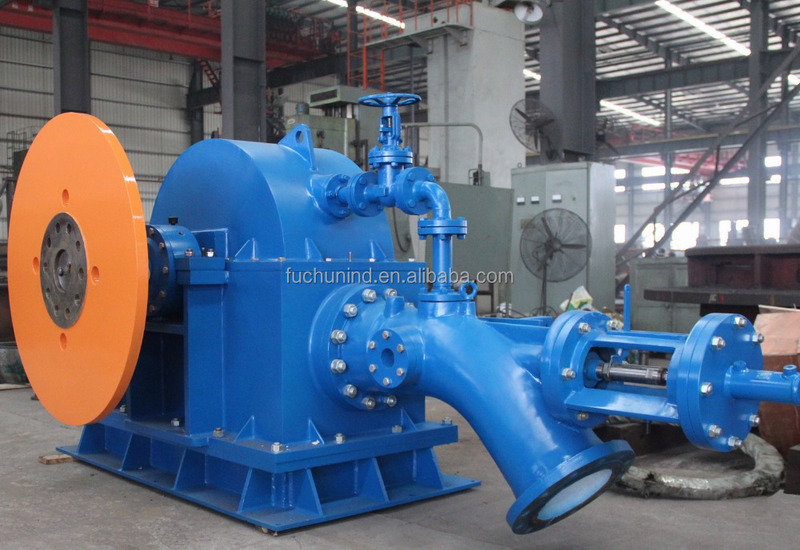

Pelton Turbine Generator Unit Photos

Installation Photos

Company Information

Fuchun Industry Development Co., ltd Shenzhe is an experienced manufacture and engineering Company in small scale hydro power equipment ( 50Kw to 50Mw). We play the role of manufacture and EPC contractor and could supply water to wire equipments and services.

We provide customers with the complete package, from the design and manufacture of the turbine, generator and control equipment through to installation, commissioning and ongoing repair and maintenance.

1.Water Turbine Generator Unit Design & SUPPLY
2.Hydropower equipment supply
3.Feasibility study of hydropower project
4.Manufacture
5.Installation & Supervision
6.Commissioning and Training service
7. Hydro power plant rehabilitant

8. Hydro power plant spares supply
9.Services

Prominent Design

Professional Service

Prime Products

Prestigious Manufacturer

Our factory occupies 560,000 square meters of land,which inculdes 18 workshops,over 320 sets of heavy and precision producing and testing machinery;scientific research development center in the southern China,and various testing facilities.Besides of our 50 years industrial experice and expertise, we also hold close ties with several research institutions and universities in this field in order to maintain advanced technology and to develop new products.More than 20 kinds of our products have been granted national or provincial technical progress and excellent products awards.We fully carry out the ISO9001 quality management system.Our products can meet IEC standard and CE requirements.

Fabricating Machinery

Horizontal Lathe, MC1363 cylindrical grinding machine, B1016A facing machine,Two points closed pressural machine, CQ5250 CNC Double Column Vertical Lathe, CNC Flame Cutting machine, 500T Press machine 500T, VacuumPressure Impregnating, the production line of resin-bonded sand and so on.

Packaging & Shipping

standard export packing, wooden cases, structural steel, seaworthy packing

Our Services

Usually we guide the installation. We will dispatch engineers to site.(electrical engineer, mechanical engineer, control engineer and a translator according to requirement)

1.Water head:___M

2.Water flow:____M3/s

3.Frequency: 50HZ/60HZ

4.Generator outgoing line voltage:__Kv

5.On-grid or Off-grid type? (On-grid type voltage:____Kv)
